Canton Racing Front Sump Oil Pan w/oil Pick-up - LS1 Swap 240SX / Genesis

Canton’s new 15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. It’s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity.

Specs:
For GM LS1/LS6 engines
6.5 system oil capacity

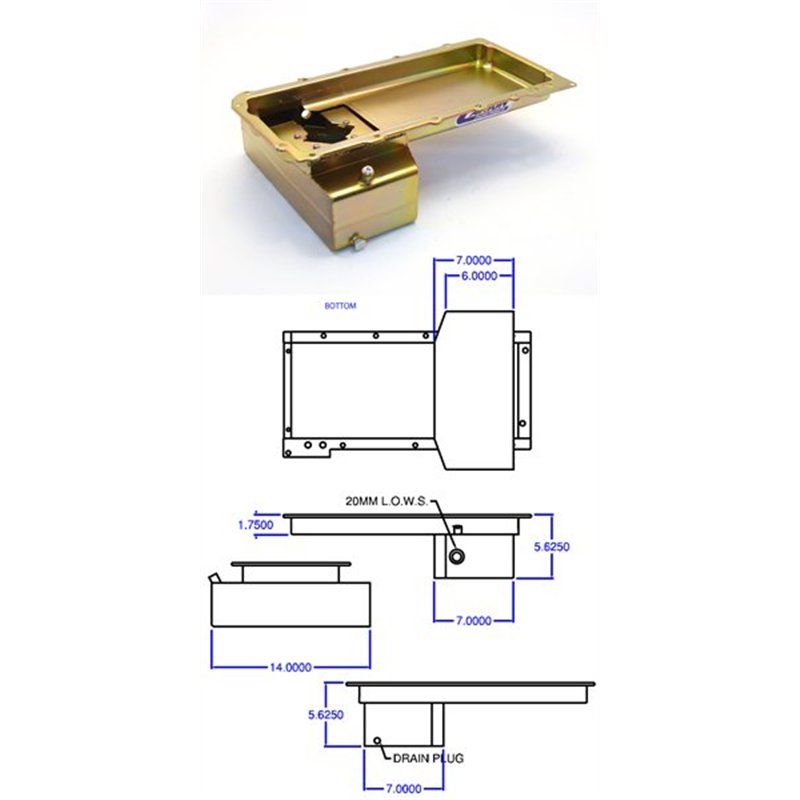

5 5/8 deep by 6 ¾ long by 14” wide front sump

Included:
- Oil Pan

- LS1 Remote Filter Adapter

- Universal DS Kit 1/4 NPT fitting

- Oil Pickup: stock Pontiac GTO pickup

Optional Oil Filter Relocator Kit (https://www.elegantdriftshop.com/en/ls-swap/3091-ls-oil-filter-relocation-kit-for-ls-swap-nissan-240sx-and-hyundai-genesis.html)

-5 Ft Nylon Braided Hose (2.5 ft for inlet, 2,5 ft for Outlet)

-Oil Filter Relocation Block

-All Fittings
